HF | NFC - RFID Reader Module ACS - ACM1552D-C7

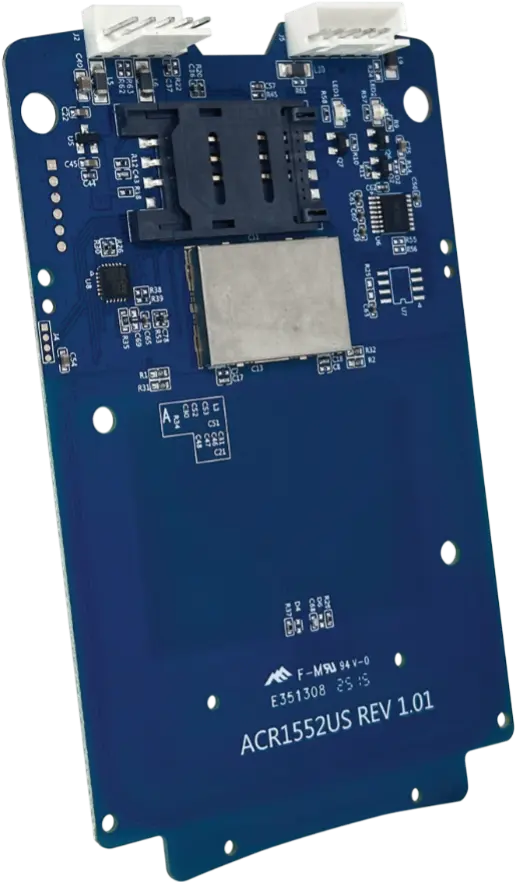

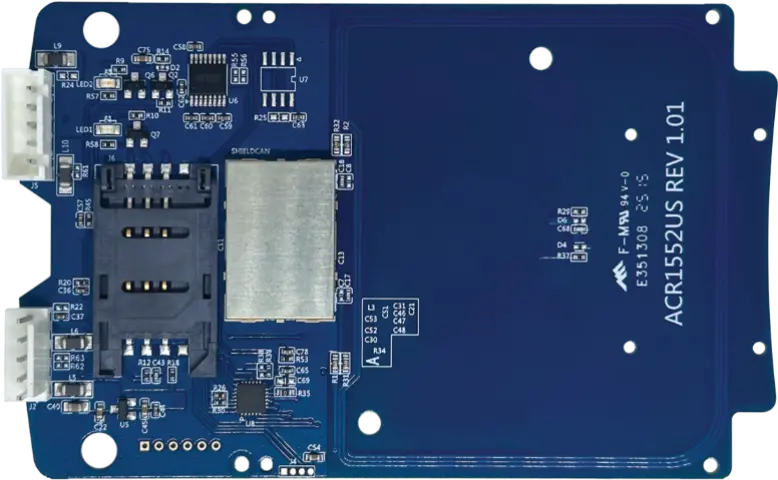

The ACM1552D-C7 from Advanced Card Systems is a high-performance HF | NFC - RFID reader module specifically designed for professional use in embedded systems, industrial applications, and modern self-service solutions. As a compact and versatile RFID reader module based on 13.56 MHz technology, it meets the highest requirements for security, flexibility, and future-proofing. It supports all relevant contactless standards, including ISO 14443 Parts 1–4 Type A and B, ISO 15693, and ISO 18092, and is fully compatible with common NFC and HF RFID media such as the MIFARE Classic® series. This positions the ACM1552D-C7 as a central HF embedded RFID reader component for companies looking to implement robust and scalable identification or payment solutions.

‍

A key differentiator of this ACS RFID reader module is the integrated ISO 7816–compliant SAM slot, which enables an exceptionally high level of security for contactless transactions. By using a Secure Access Module, cryptographic keys can be managed securely and sensitive processes such as authentication, encryption, or digital signatures can be reliably protected. This makes the ACS NFC reader module an ideal choice for security-critical applications in areas such as e-payment, e-government, access control, or network security. Thanks to its plug-and-play design, the module can be easily integrated into existing embedded architectures, while the integrated antenna and a stable card reading distance of up to 70 mm ensure reliable operation even in demanding environments.

‍

From a technological perspective, the HF RFID reader module stands out due to its high performance and flexible interface architecture. The ACM1552D-C7 supports both USB and serial RS-232 communication, offering maximum freedom in system integration. With data rates of up to 848 kbit/s for ISO 14443 cards and 26 kbit/s for ISO 15693 transponders, the module is ideally suited for applications with high transaction volumes and short response times. In addition, the NFC reader module supports multiple operating modes, including classic reader/writer mode, card emulation mode, and when using the USB interface, keyboard emulation. This versatility allows the module to be used in both closed embedded systems and PC-based applications without the need for additional hardware components.

‍

Thanks to its cost-efficient architecture and broad feature set, the ACM1552D-C7 is a future-proof solution for a wide range of use cases such as vending machines, kiosk systems, gaming machines, transport solutions, or automated access systems. Firmware updates can be conveniently performed via USB, while extended APDU support allows flexible customization for individual applications. Companies seeking a powerful, secure, and durable RFID reader module will find this ACS NFC reader module to be a professional platform for modern HF and NFC applications. IDCRAFT GmbH is available as an experienced partner to support selection, integration, and project implementation, helping you fully leverage the potential of the ACM1552D-C7 within your system landscape.
