HF | NFC - RFID Reader Modules

Our HF (High Frequency) and NFC (Near Field Communication) RFID reader modules offer top performance for applications requiring precise, fast, and secure data capture. Operating at a frequency of 13.56 MHz in accordance with international standards such as ISO 15693, ISO 14443, and NFC Forum, they are ideal for contactless identification, access control, ticketing, industrial automation, healthcare, library, and asset management.
Get in Touch!
Header-RFID-NFC-contactless-readers

HF | NFC RFID reader modules are compact OEM modules for integration into your own devices and systems. Operating at 13.56 MHz in line with ISO 14443, ISO 15693 and the NFC Forum specifications, they enable fast, secure contactless data capture – ideal for embedded applications, mobile devices and industrial reading points.

Function and integration

A reader module powers the transponder via an electromagnetic field and reads the stored data through inductive coupling – including multiple tags simultaneously. Thanks to a compact form factor, low power consumption and interfaces such as USB (PC/SC, HID, VCP), TTL/UART, Wiegand or Ethernet, the modules integrate easily into existing electronics. Available with internal or external antennas.

Typical applications

  • Access control & PC login – authentication in terminals and HMI/industrial PCs
  • Payment & vending machines – contactless payment systems and vending
  • Medical technology & point of care – secure identification inside devices
  • Kiosks & EV charging – activation and user identification

How to choose the right reader module

The decisive factors are the interface to the host electronics (USB, TTL/UART, Wiegand, Ethernet), the antenna solution (internal or external), the supported transponders, plus size and power consumption. As a value-added distributor and system integrator, we advise you vendor-independently – from module selection to integration into your embedded design.

→ Book a consultation now

Our HF | NFC reader modules at a glance

The Advanced Card Systems ACM1552U-Z2 is the fourth generation of HF | NFC - RFID reader modules developed based on 13.56 MHz contactless technology. The NFC Forum-certified NFC III reader supports the ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards.
HF | NFC - Reader Module
ACS - ACM1552U-Z2
ACS - ACM1552U-Z2
The ACS - WalletMate II Mini is an NFC Reader Module designed to facilitate mobile NFC applications. Certified by Apple and Google VAS (Value-Added Service) protocols, the WalletMate II Mini Reader Module delivers an ultimate cardless user experience by supporting various virtual passes.
HF | NFC - Reader Module
ACS - WalletMate Mini
ACS - WalletMate Mini
The ACS WalletMate II Boost (ACM1552D-CW) is a high-performance NFC reader module optimized for mobile wallet ecosystems, supporting Apple VAS and Google Smart Tap for seamless interaction with virtual passes such as loyalty cards, tickets, and digital IDs. Operating at 13.56 MHz and compatible with ISO 14443, ISO 15693, and ISO 18092 standards—including MIFARE, DESFire, FeliCa, and Topaz—it offers reader/writer, card emulation, and keyboard emulation modes, with read speeds up to 848 kbps. Featuring USB or RS-232 connectivity, an integrated antenna, extended APDU support, firmware upgradeability, and an ISO 7816 SAM slot for secure authentication, the WalletMate II Boost integrates easily into kiosks, vending machines, gaming systems, and other smart applications requiring fast, secure NFC interactions.
RFID Reader Module
ACS - WalletMate II Boost
ACS - WalletMate II Boost
The ACS ACM1552U-Y3 are HF | NFC - RFID reader modules with detachable antennas and based on 13.56MHz contactless technology. The NFC Forum-certified NFC III reader supports the ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards.
HF | NFC - Reader Module
ACS - ACM1552U-Y3
ACS - ACM1552U-Y3
The ACS ACM1552D-C7 is a compact 13.56 MHz HF/NFC reader module supporting ISO 14443 A/B, ISO 15693, ISO 18092, MIFARE and FeliCa technologies, offering high-speed communication, a read range of up to 70 mm, and multiple operating modes including reader/writer, card emulation, and USB keyboard emulation. Featuring an integrated ISO 7816 SAM slot for enhanced security, USB and RS-232 interfaces for flexible integration, an onboard antenna, and firmware upgradeability, it is a robust solution for secure embedded applications such as payment terminals, kiosks, gaming machines, transportation systems, and access control.
RFID Reader Module
ACS - ACM1552D-C7
ACS - ACM1552D-C7
HID MIFARE® Easy Reader Boards provide a compact, ISO 14443A-compliant HF platform for seamless OEM integration, supporting the full MIFARE ecosystem including MIFARE Standard, Ultralight, 4K, Pro X and compatible tag technologies; engineered for straightforward design-in, the modules feature an integrated HF antenna (model dependent), flexible ASCII or binary command protocols, RS232/TTL point-to-point communication, and virtual COM or DLL driver support, enabling fast development of ticketing systems, terminals, handhelds, kiosks, and access management devices. With reliable 13.56 MHz performance, read ranges up to 95 mm, low power consumption, and support for in-field upgrades, the MIFARE Easy Reader Boards deliver a scalable, cost-efficient solution for OEMs building robust HF/NFC authentication and data-capture applications.
RFID Reader Module
HID - MIFARE® Easy Reader Boards
HID - MIFARE® Easy Reader Boards
The HID Multi-ISO Reader Boards are versatile HF/NFC reading modules supporting ISO 14443 A/B, ISO 15693, and ISO 7816 SAM, making them ideal for access control, ticketing, and identity management.
HF | NFC - Reader Module
HID - Multi-ISO Reader Platform
HID - Multi-ISO Reader Platform

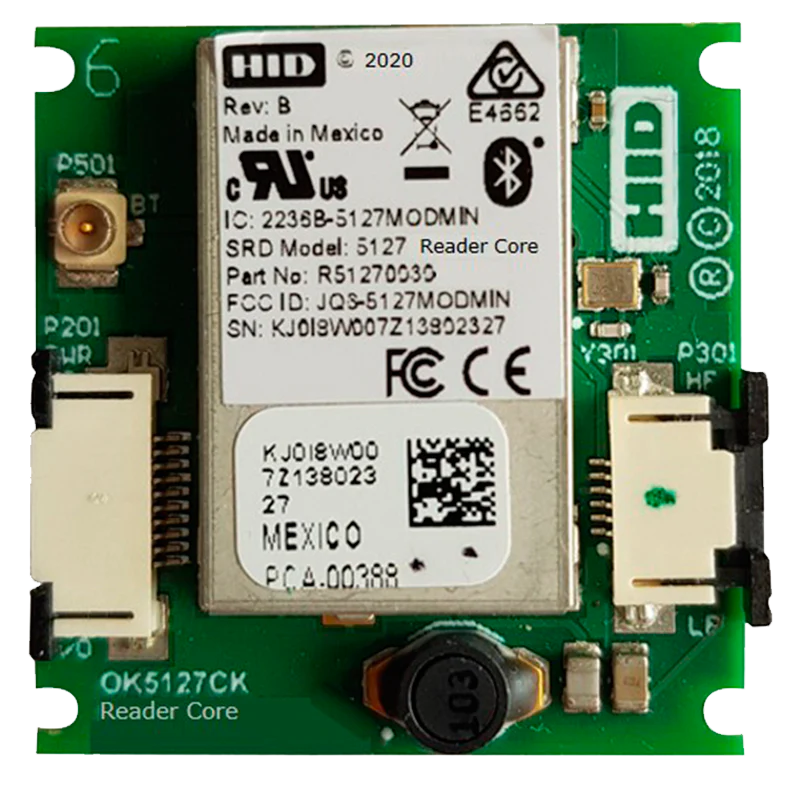

The HID OMNIKEY 5127CK Core is a powerful and ultra-compact OEM reader module that supports both high-frequency (HF) and low-frequency (LF) technologies, including Seos®, iCLASS SE®, MIFARE®, DESFire®, HID Prox® and NFC, making it a versatile solution for embedded authentication and access control; designed for seamless integration, it offers multi-interface options such as CCID, UART, USB and keyboard wedge, alongside support for NFC and Bluetooth Low Energy mobile credentials. External HF/LF and BLE antennas enable flexible custom antenna designs, while features such as remote wake-up, USB suspend/resume, and field-upgradeable firmware simplify deployment in industrial terminals, handheld devices, kiosks, vending systems, and secure identity platforms. With its compact footprint and broad OS compatibility, the 5127CK Core provides integrators with a future-ready, high-performance module for advanced identity and access management applications.
HF | LF - Reader Module
HID - OMNIKEY® 5127CK Core
HID - OMNIKEY® 5127CK Core
The HID OMNIKEY 5127CK is a compact dual-frequency HF/LF reader module designed for embedded authentication and access control, supporting advanced credentials such as Seos®, iCLASS SE®, MIFARE Classic®, DESFire EV1/EV2, HID Prox® as well as NFC and Bluetooth mobile access; its multi-interface architecture—including CCID, USB, UART, and keyboard wedge—enables seamless integration into industrial devices, kiosks, medical equipment, IoT hardware, and secure workstation environments. With lightning-fast setup, keystroke emulation for direct data input, field-upgradable firmware, and optional rugged industrial housing, the 5127CK provides a flexible, future-proof solution for system integrators seeking powerful authentication capabilities in space-constrained designs.
RFID Reader Module
HID - OMNIKEY® 5127CK
HID - OMNIKEY® 5127CK
The HID OMNIKEY 3121 Reader Module is a compact, high-performance smart card reader engineered for OEM integration, offering full ISO 7816 and EMVCo Level 1 compliance, USB 2.0 CCID plug-and-play connectivity, and broad compatibility with Windows, Android, Mac OS X, Linux, and embedded platforms; supporting Class A/B/C contact smart cards with fast transmission speeds and advanced detection features such as automatic card type recognition, short-circuit protection, and auto power-off, the 3121 delivers long-term durability with up to 100,000 insertions and a 500,000-hour MTBF, making it ideal for secure authentication, digital signatures, e-government, healthcare, and enterprise access solutions.
HF | NFC - Reader Module
HID - OMNIKEY® 3121
HID - OMNIKEY® 3121
The rf IDEAS WAVE ID® Plus OEM Pico is an ultra-compact dual-frequency RFID reader module designed for secure, embedded authentication in space-constrained OEM devices. Supporting both 125 kHz LF proximity credentials and 13.56 MHz HF contactless smart cards compliant with ISO 14443, it enables broad compatibility with physical badges and mobile credentials, including PSIA PKOC standards. The module supports CCID operation, keystroke emulation, virtual COM, and integration via the rf IDEAS SDK, ensuring flexible deployment across Windows, Linux, macOS, and Android platforms. With its minimal footprint, USB interface, low power consumption, and long lifecycle design, the WAVE ID Plus OEM Pico is ideal for medical devices, industrial HMIs, kiosks, enterprise peripherals, EV charging infrastructure, and other embedded access-controlled systems.
HF | LF - Reader Module
rf IDEAS - WAVE ID® Plus OEM Pico
rf IDEAS - WAVE ID® Plus OEM Pico
The rf IDEAS WAVE ID® Plus OEM Micro is a compact dual-frequency RFID reader module designed for secure embedded authentication in OEM devices. Supporting both 125 kHz LF proximity cards and 13.56 MHz HF contactless smart cards compliant with ISO 14443, it enables broad credential compatibility, including physical badges and mobile credentials based on PSIA PKOC standards. The module supports CCID operation, keystroke emulation, virtual COM, and integration via the rf IDEAS SDK, allowing flexible deployment across Windows, Linux, macOS, and Android platforms. With its small form factor, USB interface, low power consumption, and long lifecycle design, the WAVE ID Plus OEM Micro is ideally suited for medical devices, industrial HMIs, kiosks, enterprise peripherals, EV chargers, and other secure access-controlled systems requiring reliable, embedded RFID authentication.
HF | LF - Reader Module
rf IDEAS - WAVE ID® Plus OEM Micro
rf IDEAS - WAVE ID® Plus OEM Micro
The rf IDEAS WAVE ID® Plus OEM is a versatile dual-frequency RFID reader module designed for secure, embedded authentication in OEM devices. Supporting 125 kHz LF proximity cards and 13.56 MHz HF contactless smart cards compliant with ISO 14443, it enables broad credential compatibility, including physical badges and mobile credentials based on PSIA PKOC standards. The module supports CCID operation, keystroke emulation, virtual COM, and integration via the rf IDEAS SDK, ensuring flexible deployment across Windows, Linux, macOS, and Android platforms. Available in multiple OEM form factors, the WAVE ID Plus OEM offers easy mechanical integration, long lifecycle support, and reliable performance for medical devices, industrial HMIs, kiosks, enterprise peripherals, EV chargers, and other access-controlled systems.
RFID Reader Module
rf IDEAS - WAVE ID® Plus OEM
rf IDEAS - WAVE ID® Plus OEM
rfid schlüsselanhänger

HF | NFC – RFID Reader Modules for precise and reliable identification

Our HF (High Frequency) and NFC (Near Field Communication) RFID reader modules offer top performance for applications requiring precise, fast, and secure data capture. Operating at a frequency of 13.56 MHz, compliant with international standards such as ISO 15693, ISO 14443, and the NFC Forum, they are ideal for contactless identification, access control, ticketing, industrial automation, healthcare, library, and asset management. Thanks to their compact design, low power consumption, and easy integration, our HF | NFC RFID reader modules are perfect for embedded applications, mobile devices, and industrial reading systems. Simple integration via USB or TTL (UART) interfaces allows developers and manufacturers of electronic devices to quickly and easily integrate RFID systems into their products. Choose IDCRAFT for high-performance HF | NFC reader technology – optimized for digitization, IoT applications, and Industry 4.0.

Function of HF | NFC - RFID Reader Modules

HF | NFC - RFID reader modules operate at a frequency of 13.56 MHz and enable contactless communication between the reader and transponder according to standards such as ISO 15693, ISO 14443, and the NFC Forum. The module powers the RFID or NFC tag via an electromagnetic field and receives the stored data through inductive coupling. This technology allows for fast, precise, and secure information reading, even with multiple transponders simultaneously. Thanks to their compact design and interfaces such as USB or UART, HF | NFC - reader modules can be easily integrated into devices – ideal for access control, ticketing, medical technology, payment systems, and IoT applications.
Applications in the areas of access control, payment, healthcare, etc.
HF - RFID reader modules are usually used in applications such as medical & healthcare environments, point of care - technology, access management, PC log-on systems, HMI - industrial PC's, payment systems, vending machines and ev charging station.
Features: Frequency range, reading distance, connectivity
13.56MHz (HF | NFC - RFID) has a reading range of up to 10cm. Available interfaces are USB - PC/SC (CCID), USB - HID, USB - VCP, TTL (UART), Wiegand or Ethernet. The reader modules are available with internal or external antennas
Advantages of RF reading modules
Secure identification through data encryption. Low power consumption. Compact design. Flexible antenna designs.
Why buy RF reading modules from IDCRAFT GmbH?
IDCRAFT supplies high-performance HF | NFC - RFID reader modules from renowned manufacturers and supports you with independent consulting and project-based hardware designs. Thanks to our broad portfolio, we can find the right module for your application – from integration into embedded systems to industrial reading points. We support you from selection & integration to after sales service. We ensure that your solution functions reliably.
