UHF | RAIN - Reader Module
CT - modEAx1
■ RAIN RFID (UHF EPC Class1 Gen2, ISO 18000-63) compliant
■ Up to 26 dBm output power
■ 1 x MMCX antenna port
■ Up to 10m reading range
■ Serial interface (TTL Levels)
Overview

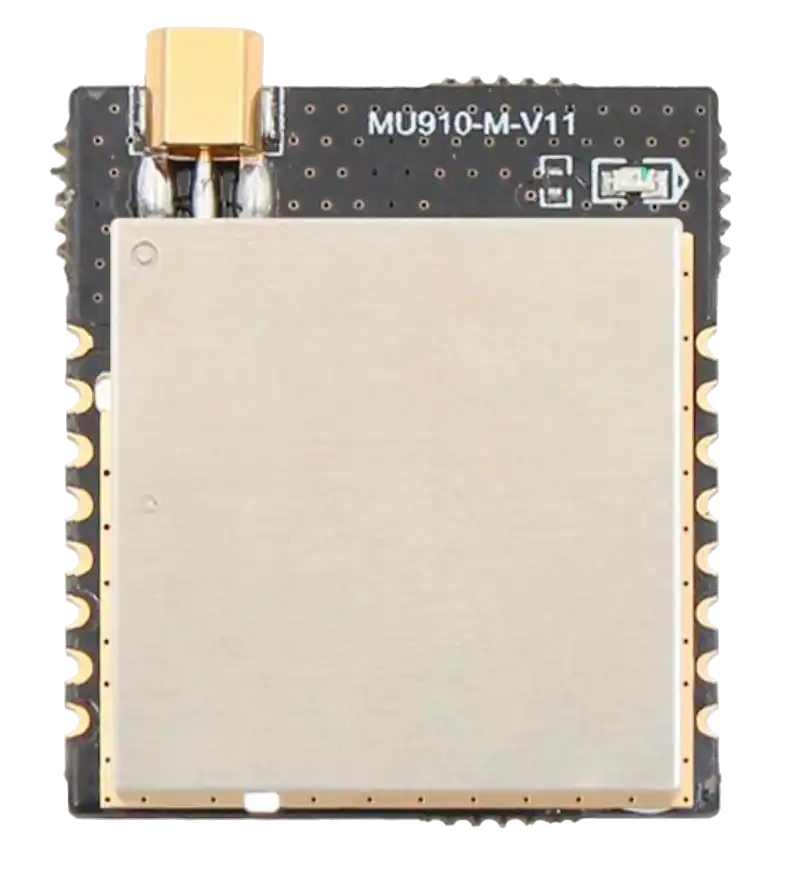

CRAFT TECHNOLOGIES modEAx1 is a ultra compact RFID reader module with one external antenna port. This UHF | RAIN - RFID reader module comes with a programmable output power of up to 26 dBm, the readers can detect tags at a distance of up to 10m (depending on the reader IC, antenna, tag dimensions and environment).
Due to their compact size, the modules are well suited for the development of very compact devices. The reader module support TTL - UART as interface and comes with an serial command protocol.
RFID OEM Reader
Applications
■ Handheld devices
■ Vehicle mounted readers
■ Point of Care
■ Point of Sale
■ Industrial Automation
