UHF | RAIN - Reader Module
CT - modEAx310
■ RAIN RFID (UHF EPC Class1 Gen2, ISO 18000-63) compliant
■ Up to 33 dBm output power
■ 1 x MMCX antenna port
■ Up to 12m reading range
■ Serial interface (TTL Levels)
Overview

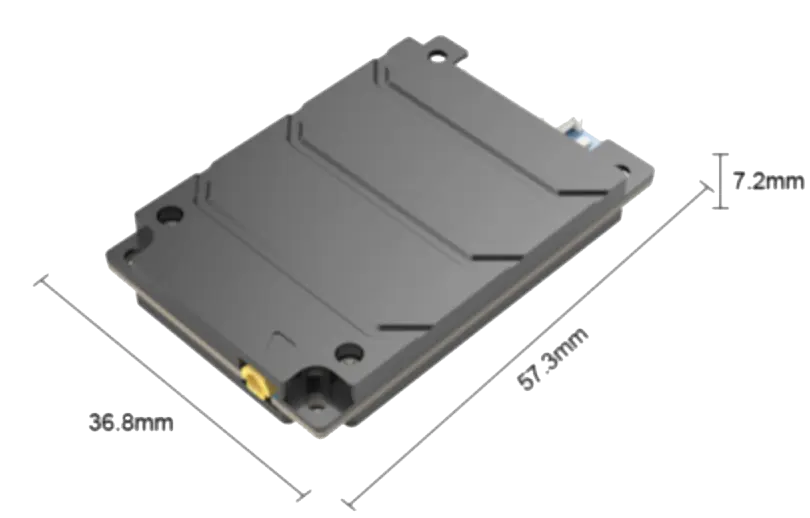

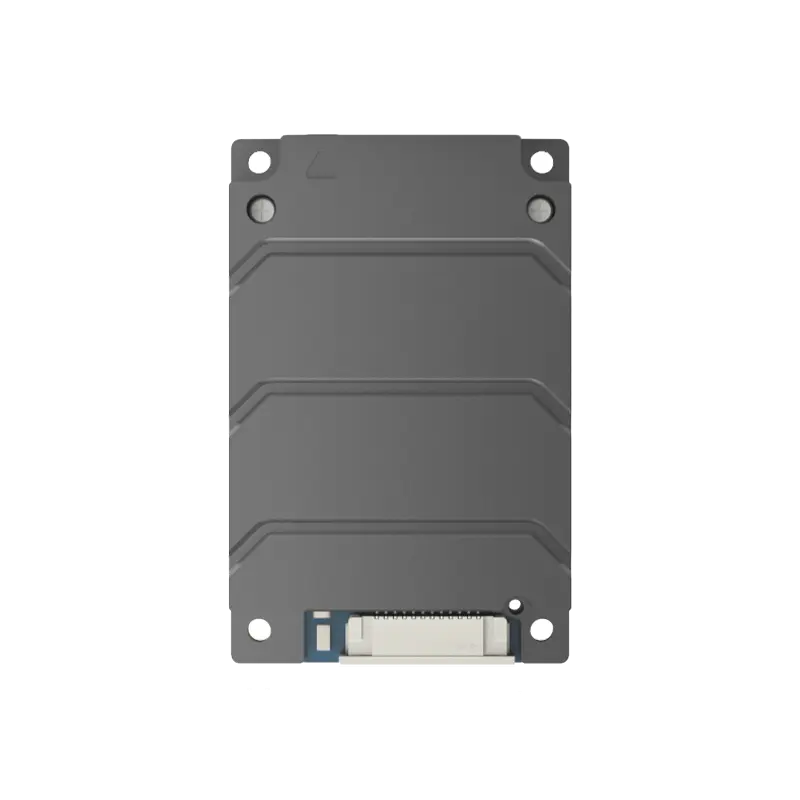

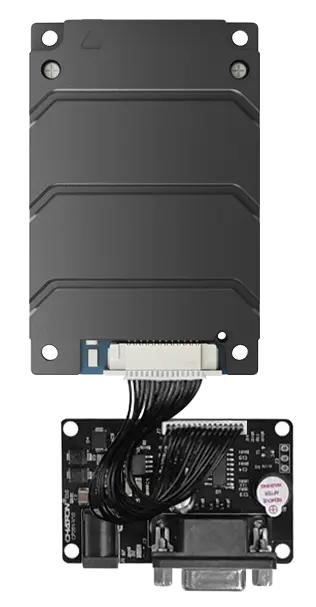

CRAFT TECHNOLOGIES modEAx310 is a compact RFID reader module with one external antenna port. This UHF | RAIN - RFID reader module comes with a programmable output power of up to 33 dBm, the readers can detect tags at a distance of up to 12m (depending on the reader IC, antenna, tag dimensions and environment).
The reader module support TTL - UART as interface and comes with an serial command protocol.
RFID OEM Reader
Applications
■ Handheld devices
■ Vehicle mounted readers
■ Point of Care
■ Point of Sale
■ Industrial Automation
