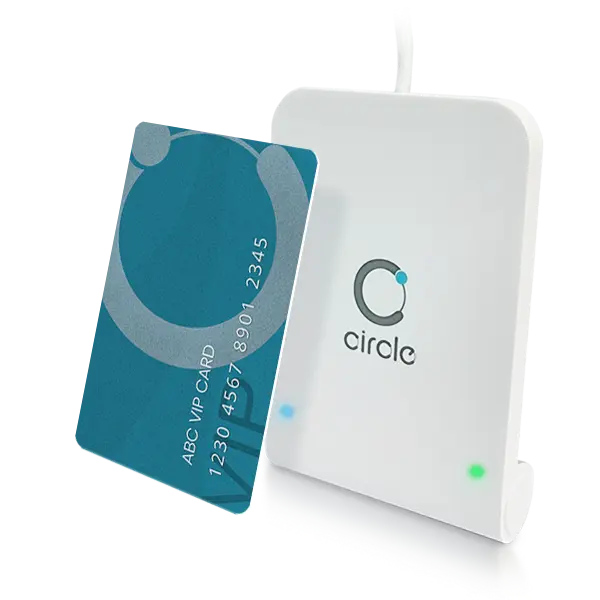

HF | NFC - RFID Desktop Reader AB Circle - CIR315A

The AB Circle CIR315A is a compact desktop reader for 13.56 MHz contactless smart cards and NFC tags with an integrated ISO/IEC 7816 SAM slot for secure key storage and cryptographic operations. It supports ISO/IEC 14443-4 Type A and B, ISO/IEC 15693-3 and ISO/IEC 18092 NFC, covering MIFARE® Classic, Plus, Ultralight, Ultralight C, DESFire, DESFire EV1 and EV2, FeliCa (Standard, Lite, Plug), Calypso, J-LIS cards and NFC Forum Type 1 to 5 tags. Transfer rates reach up to 848 kbps, and the reading distance is up to 50 mm, depending on the tag type.

‍

The SAM slot takes ID-000 (SIM-size) cards of ISO/IEC 7816 Class A (5 V) with T=0 or T=1 at 9.6 to 125 kbps, so keys stay in a secure access module instead of the host application. Towards the host, the CIR315A is a USB 2.0 Full Speed device (12 Mbps) that complies with CCID and conforms to PC/SC; contactless cards are addressed via T=CL, which the reader translates to T=1 for PC/SC. Extended APDUs are supported, and the firmware can be upgraded via USB. Supported operating systems are Windows® 7 SP1 and above, Linux®, macOS® 10.12 and above and Android™ 6.0 and above; Microsoft® WHQL is part of its compliance list.

‍

The reader is powered via its 1 m USB cable, needs no external supply and draws less than 250 mA in operation. Its white and grey ABS housing measures 98 x 66 x 11 mm and weighs 81 g; an optional reader stand is available. Typical applications are e-government, access control, network log-on, public transport ticketing, payment and card encoding. The reader operates from −10 to 70 °C, MTBF is 600,000 hours, and its certifications include EN 62368, BS EN 62368, CE, FCC, UKCA, VCCI, MIC, RoHS3 and REACH. Four versions are available: CIR315A-01 with USB-A and SAM slot (standard), CIR315A-02 with USB-A without SAM slot, and CIR315A-03 and -04 with USB-C, with or without SAM slot; all versions except -01 are subject to a minimum order quantity. Samples and project pricing are available from IDCRAFT on request.

‍
